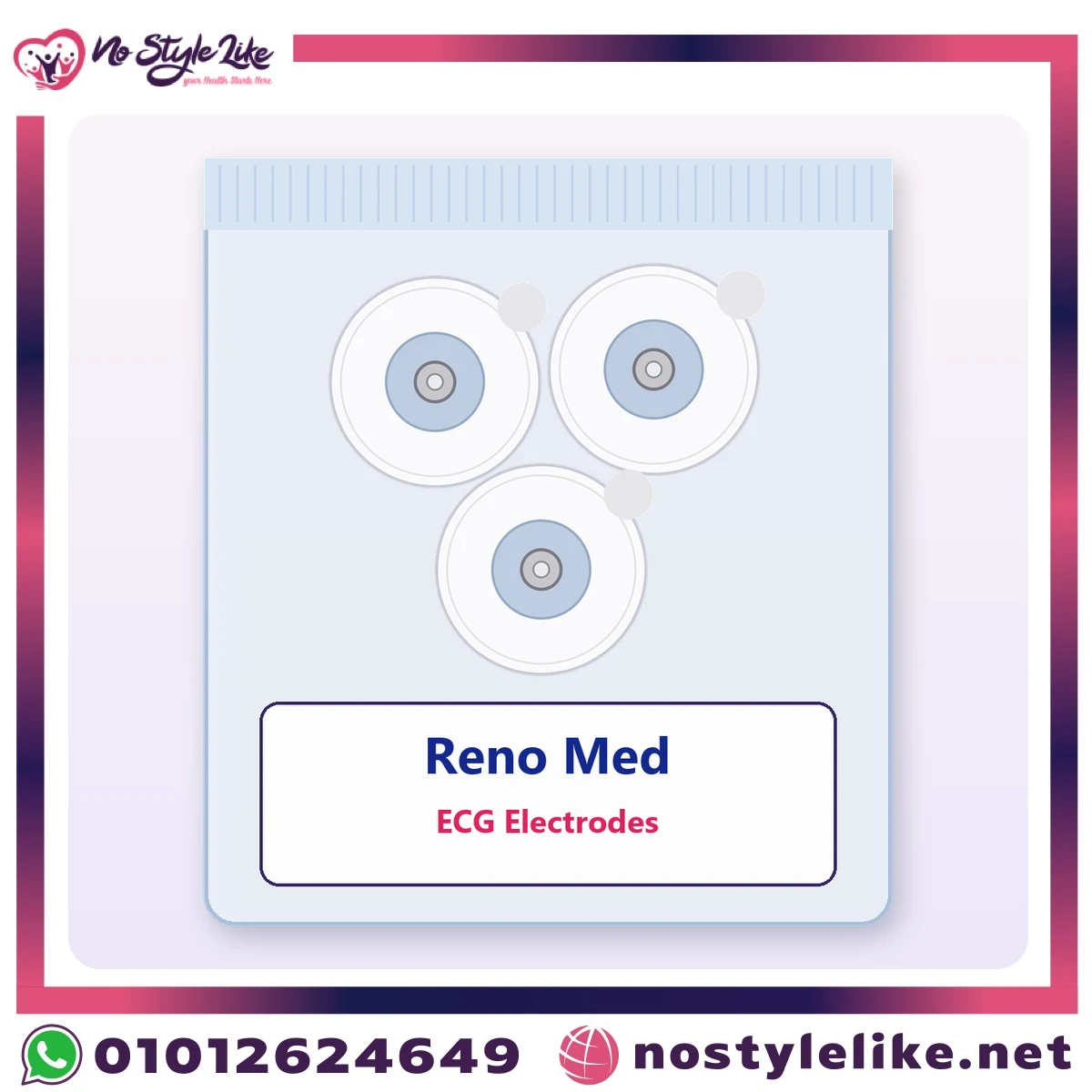

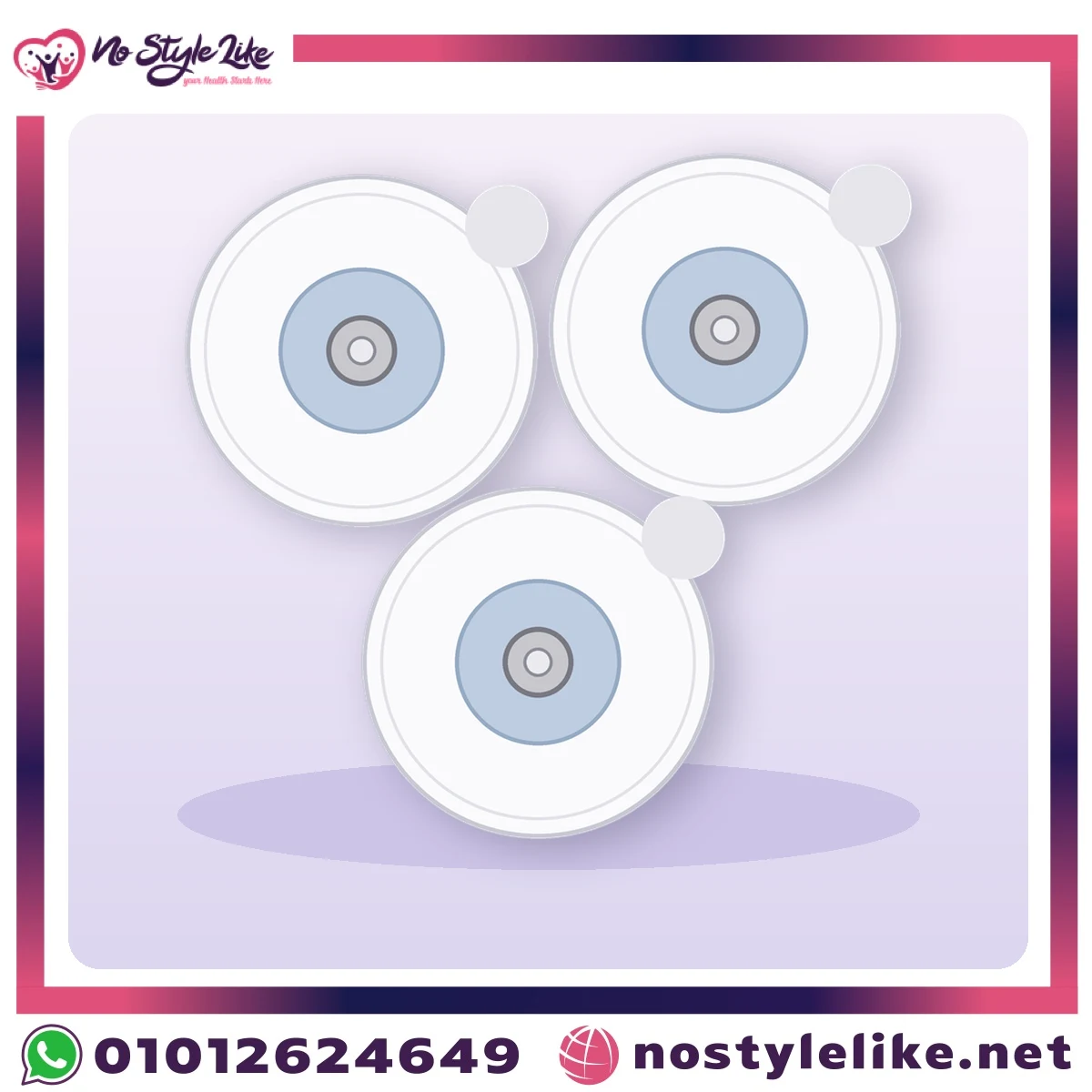

Reno Med ECG Electrodes – Bundle of 200 electrodes

Description

Reno Med ECG Electrodes – Disposable Snap Electrodes for 12-Lead ECG and Monitoring: A Complete 22-Section Guide

Key Facts About Reno Med ECG Electrodes

Short description: Reno Med ECG Electrodes are single-use snap electrodes that give ECG machines and bedside monitors a stable skin contact, sold individually so clinics and hospitals order exactly what they use.

Introduction to Reno Med ECG Electrodes

An ECG is only as good as the contact between the skin and the machine. A perfect cardiograph connected through a dry, loose or badly placed electrode will print a wandering baseline, noise and false alarms, and that can mean repeated tests, wasted time and, at worst, a missed or misread rhythm.

Reno Med ECG Electrodes are the small consumable that makes that contact. In this guide the No Style Like pharmacy team explains what they are, how the gel and snap work, how to prepare the skin and place them, which machines they connect to and how to store them so the gel stays ready for use.

What Are Reno Med ECG Electrodes?

Reno Med ECG Electrodes are disposable electrodes for electrocardiography supplied by Reno Med (الريناد ميديكال), an Egyptian medical-supplies importer and distributor whose slogan is “Quality is a way of life”. They are of Chinese origin and are sold per electrode, which suits a private clinic that needs a few dozen as well as a hospital that restocks daily.

Each electrode has an adhesive pad that holds it on the skin, a conductive gel centre that carries the tiny electrical signals of the heart, and a metal snap stud on top for the lead clip. The pack count, backing material and whether a separate paediatric size exists are not stated in the material we have, so please ask us on WhatsApp if you need these details before ordering.

How the Gel and Snap Work

• Conductive gel: fills the microscopic gaps between skin and sensor and lowers skin resistance, so the heart signal reaches the machine with less noise.
• Adhesive pad: keeps the gel in place and stops the electrode moving with breathing or patient movement.
• Metal snap stud: gives a firm, quick connection for snap-type lead wires and clips.

The electrode does not generate any current. It simply picks up the voltage that the heart produces and passes it to the ECG machine or monitor, which records and displays it.

Key Advantages of Reno Med ECG Electrodes

• Snap design that connects quickly to standard snap lead clips.
• Gel centre for good skin contact and a cleaner tracing.
• Adhesive pad that suits short resting ECGs and longer monitoring.
• Single use, which supports infection control between patients.
• Each of the Reno Med ECG Electrodes is sold individually, so you only buy the quantity you need.
• Delivered across Egypt from No Style Like.

Real-Life Use Cases

Cardiology clinic: an ECG technician records a resting 12-lead ECG, using ten Reno Med ECG Electrodes placed on the four limbs and the six chest positions, then discards them after the tracing is printed.

Operating room: before induction, the nurse attaches three or five Reno Med ECG Electrodes for continuous monitoring, alongside the anesthesia face mask the anesthesiologist will use.

Exercise stress test: the skin is shaved and lightly abraded where needed so the electrodes stay on despite sweat and movement on the treadmill.

Who Are Reno Med ECG Electrodes For?

• ECG technicians in cardiology clinics, labs and hospital ECG rooms.
• ICU, CCU and emergency nurses who manage cardiac monitors.
• Anesthesia teams monitoring patients in theatres and recovery rooms.
• Holter and stress-test units.
• Ambulance services and polyclinics that keep ECG supplies in stock.

When Are They Not Suitable?

• Broken, burnt or infected skin at the placement site; choose another nearby area.
• A known allergy to electrode adhesive or gel; use an alternative and watch the skin.
• Electrodes whose gel has dried out or whose pouch has been open too long.
• Machines that use non-snap connectors (tab or banana) without a suitable adapter.
• MRI rooms: the snap is metal, and MRI suitability is not stated in our material.

How to Use Reno Med ECG Electrodes

1. Explain the test to the patient and expose the chest and limbs with privacy.
2. Clean the skin, dry it well and remove excess hair; avoid lotions and oils.
3. Peel the electrode from its liner without touching the gel.
4. Place it on the correct site and press around the edge of the pad, not on the gel centre.
5. Attach the lead clip to the snap stud and check each lead is on the right electrode.
6. Ask the patient to lie still, breathe normally and not talk during the recording.
7. After the test, remove the electrodes gently and discard them; they are single use.

Best Time to Apply Them

Apply the electrodes just before connecting the leads, on skin that is already clean and dry. Opening the pouch long before use lets the gel start to dry. For a resting ECG, let the patient rest lying down for a few minutes first, so the heart rate settles and muscle tremor is reduced.

What to Expect in Practice

With good skin preparation and fresh Reno Med ECG Electrodes, you should see a stable baseline and clear P waves, QRS complexes and T waves. If the tracing is noisy or wandering, the usual causes are dry gel, a lifting edge, hairy or oily skin, patient movement or a loose lead clip rather than the heart itself. Replace the affected electrode and check its lead before repeating the recording.

Common Mistakes

• Placing electrodes on lotion-covered or sweaty skin.
• Touching the gel with the fingers, which contaminates it and weakens contact.
• Placing chest electrodes one intercostal space too high or too low, which changes the ECG.
• Reusing an electrode after it has been removed.
• Leaving opened pouches exposed to heat and sun so the gel dries.

Myths and Facts

Myth: a noisy ECG means the machine is faulty. Fact: most artefacts come from poor skin contact, dried gel or patient movement.

Myth: extra gel always improves the signal. Fact: gel spreading between neighbouring electrodes can blur the signal; the built-in gel centre is designed to be enough.

Possible Skin Problems

• Mild redness at the site after removal, which usually fades quickly.
• Itching or irritation from the adhesive, especially with long monitoring; remove the electrode if this develops.
• Skin stripping in elderly patients or newborns if removed too fast; peel slowly and support the skin.
• Blistering or rash is uncommon and should be reported to the doctor.

Compatibility With ECG Machines and Monitors

Reno Med ECG Electrodes have a standard metal snap stud, so they connect directly to snap-type lead wires and to clips that grip a snap. That covers most bedside monitors, many Holter recorders, stress-test systems and resting ECG machines that use snap or clip leads.

• Resting 12-lead ECG machines with snap or clip lead wires.
• Three-lead and five-lead bedside and transport monitors.
• Holter and stress-test recorders that use snap electrodes.
• Machines with tab or banana connectors need an adapter.
• During defibrillation, keep electrodes and leads clear of where the defibrillator pads go.

Warnings

• Reno Med ECG Electrodes are single use; discard after removal.
• Keep them in the sealed pouch away from heat and sunlight so the gel does not dry.
• Do not use if the gel is dry or the adhesive no longer sticks.
• Remove the electrode if skin irritation or itching develops.
• Pack count, backing material and size are not stated in our material; confirm on WhatsApp before ordering.

Checks Before Use

1. Check the pouch is sealed and the expiry date printed on the pack has not passed.
2. Check the gel is moist and centred on the pad.
3. Check the snap stud is firmly fixed to the pad.
4. Check the lead wires are clean and undamaged and the clips grip the snap firmly.
5. Run a short test strip and look for a stable baseline before recording.

What to Use Reno Med ECG Electrodes With

• An ECG machine or monitor with snap or clip lead wires.
• Skin preparation supplies: alcohol swabs or soap and water, gauze and a razor or clipper.
• ECG paper for the machine.
• In theatre, airway equipment such as the Reno Med Anesthesia Face Mask.
• Sterile drapes and gowns such as the Reno Med Surgical Pack 3 Gowns.

Product Comparison

When to Call the Doctor

• The ECG shows a new or worrying change, or the monitor alarms for a rhythm problem.
• The patient has chest pain, palpitations, fainting or breathlessness during the test.
• The skin under the electrodes blisters, bleeds or shows a spreading rash.
• A clean tracing cannot be obtained despite fresh electrodes and good preparation.

NSL Expert Tip

Reno Med ECG Electrodes FAQ

How many electrodes does a 12-lead ECG need?

A standard 12-lead ECG uses 10 electrodes: four on the limbs and six on the chest.

Are they sold individually?

Yes, the price is per one electrode.

Can I reuse an electrode?

No. They are single use and should be discarded after removal.

Will they fit my monitor?

They have a standard metal snap, so they fit snap and clip lead wires; tab or banana connectors need an adapter.

Are they foam or non-woven, adult or paediatric?

These details are not stated in our material. Ask us on WhatsApp before ordering.

Why is my tracing noisy?

Usually because of dry gel, oily or hairy skin, movement or a loose lead clip.

What is the expiry date?

The expiry date is printed on the pack.

Conclusion

Reno Med ECG Electrodes are disposable snap electrodes with an adhesive pad and conductive gel centre, imported and supplied by Reno Med for resting ECG, cardiac monitoring, Holter and stress testing. Prepare the skin, keep the gel fresh and use each electrode once. Order Reno Med ECG Electrodes today from No Style Like Pharmacy with delivery across Egypt.

Reviewed by the No Style Like Pharmacy content team. This information is for educational purposes only.

This is a professional medical device; ECG interpretation is a medical task. Learn more at MedlinePlus – Electrocardiogram.
